CAE Compare

xSetCAEHotspotsCompareOptions

Sets compare options for hotspots to be generated.

In GUI

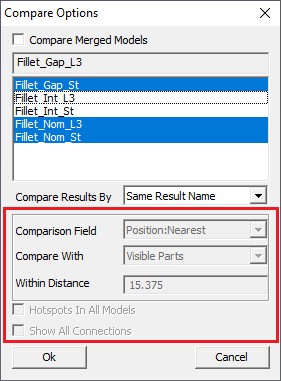

../../_images/64f7e20b63dd3cb2b75d03241b2a9225.png

bool xSetCAEHotspotsCompareOptions(bool bEnableCompare, bool bHotspotInAllModels, short iCompareMode, short iCompareWith, float fWithInDistance, bool bShowAllConnections)

return

Returns True if successful.

bEnableCompare

Enables model comparison of result values.

bHotspotInAllModels

If True, finds hotspots in all models and compares across all models.

If False, find Hotspots only in the current model and those Hotspots are used to compare across all models.

iCompareMode

Sets comparison mode (Comparision Filed in GUI) . Valid range 0 to 7.

  • 0 for Position: Nearest

    • Compare one hotspot Node with a Node from another model based on position.

    • Gets the nearest Node from the other model with distance < Radius (‘Within Distance’).

    • Select this nearest node for comparison.

  • 1 for Position: Min/Max

    • Compare one hotspot Node with a Node from another model based on position.

    • Gets all Nodes in other models with distance < radius.

    • From this set of Nodes select one Node for comparison.

    • For Top hotspot select Node with Max value.

    • For Bottom hotspot select Node with Min value.

  • 2 for ID

    • Compare the hotspot Node with a Node from another model having the same id.

  • 3 for ID: Distance

    • Compare the hotspot Node with a Node from another model having the same id.

    • And distance < radius

  • 4 for Hotspot: Min/Max

    • Compare the hotspot Node with a hot spot Node from another model.

    • Get all hotspot nodes in other models with distance < radius.

    • Here hotspots in the second model are local peaks (without any range limit).

    • From this set of hotspots select one hot spot for comparison.

    • For Top hotspot select top hotspot with Max value.

    • For Bottom hotspot select bottom hot spot with Min value.

  • 5 for Hotspot: Nearest

    • Compare the hot spot Node with a hot spot Node from another model.

    • Get all hotspot nodes in other models with distance < radius.

    • Here hotspots in the second model are local peaks (without any range limit).

    • From this set of hotspots select nearest hotspot (of the same type) for comparison.

  • 6 for Hotspot: Min/Max User range

    • Compare the hotspot Node with a hot spot Node from another model.

    • Get all hotspot nodes in other models with distance < radius.

    • Here hot-spots in the second model are also filtered based on range (same as first model).

    • From this set of hotspots select one hot spot for comparison.

    • For Top hot spot select top hotspot with Max value.

    • For Bottom hotspot select bottom hot spot with Min value.

  • 7 for Hotspot: Nearest User range

    • Compare the hot spot Node with a hot spot Node from another model.

    • Get all hotspot nodes in other models with distance < radius.

    • Here hot-spots in the second model are also filtered based on the range (same as first model).

    • From this set of hotspots select nearest hotspot (of the same type) for comparison.

iCompareWith

Sets comparison with Same part name/Currently visible parts/all parts of other models. Valid range 0 to 2.

0 - for Same Part
1 - for Current Visible Parts
2 - for All parts

fWithInDistance

Sets a radius to compare hotspots within a sphere.

bShowAllConnections

If True, Sets additional label lines to compared node/element of other models.

If False, Sets label line only to the model that generated the hotspot.

xSetCAEHotSpotsCompareResultsMode

Set mode for Compare Result By field. By default comparison of result across model is done by Same Result Name. Other two modes are, Selected Results Order and given Result’s Display Name.

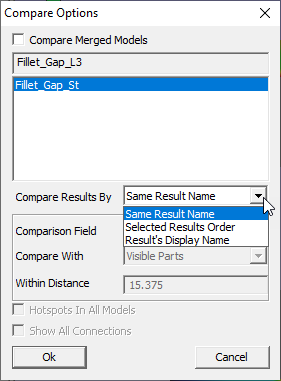

../../_images/12238acab30d7facf41f096082fa256a.png

void xSetCAEHotSpotsCompareResultsMode(int iCompareResultsMode, String sModel=””)

return

None.

iCompareResultsMode

Sets Comparison of Results mode. Valid Range 0-2.

0 – Same Result Name
1 - Selected Results Order
2 - Result’s Display Name

sModel

Model name for this Mode to set. By default it set to current CAE model.

xGetCAEHotSpotsCompareResultsMode

Get currrent mode for Compare Result By field.

int xGetCAEHotSpotsCompareResultsMode(String sModel=””)

return

Returns currently selected mode for result comparison.

0 – Same Result Name
1 - Selected Results Order
2 - Result’s Display Name

xSetCAEHotSpotsCompareDatasets

Selects Model for comparison. By default, all merged models will be compared. This method sets only specific models to compare.

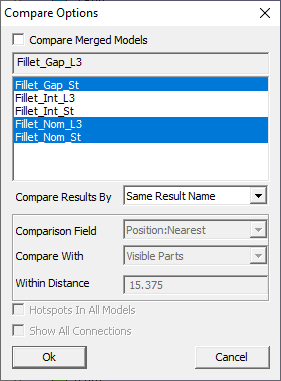

../../_images/1163d91dcbf9cae60a31ff5e1dd57ccc.png

bool xSetCAEHotSpotsCompareDatasets(List<String> selectedDataSets, String sModel=””)

return

Returns True, if successful.

selectedDataSets

Pass required CAE models list to involve compare.

sModel

CAE model name to set this selection list. By default, it will set to current CAE model.

pxGetCAEHotSpotsCompareDatasets

Gets currently selected cae models list for comparison.

List<String> pxGetCAEHotSpotsCompareDatasets(String sModel=””)

return

Returns currently selected models list for CAE hotspot comparision.

sModel

CAE model name to set this selection list. By default, it will set to current CAE model.

pxGetCAEHotspotsCompareOptions

Gets compare options applied for hotspots to be generated.

std::vector<float> pxGetCAEHotspotsCompareOptions()

return

Returns array of size 6.

If successful xSetCAEHotspotsCompareOptions parameters returned in the following order

Index [0] = bEnableCompare.

Index [1] = bHotspotInAllModels;

Index [2] = bShowAllConnections

Index [3] = iCompareMode

Index [4] = iCompareWith

Index [5] = fRadius fWithInDistance
